BaseWall Class Reference

#include <BaseWall.h>

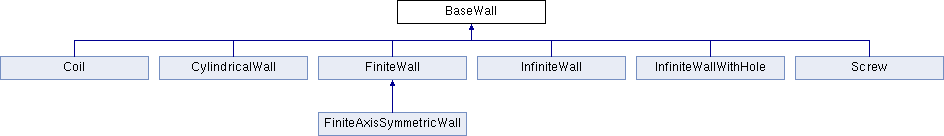

Inheritance diagram for BaseWall:

Public Member Functions
	BaseWall ()
	BaseWall (const BaseWall &p)
virtual	~BaseWall ()
virtual BaseWall *	copy () const =0
virtual void	clear ()
virtual void	move (Mdouble position_ UNUSED)
	Allows the wall to be moved to a new position. More...
virtual void	move (Vec3D velocity_ UNUSED, Mdouble dt UNUSED)
	Allows the wall to be moved to a new position (also orthogonal to the normal), and setting the velocity. More...
virtual void	move_time (Mdouble dt UNUSED)
	Allows the wall to be moved to a new position (also orthogonal to the normal), and setting the velocity. More...
virtual bool	get_distance_and_normal (BaseParticle &P UNUSED, Mdouble &distance UNUSED, Vec3D &normal_return UNUSED)=0
void	set_Velocity (Vec3D new_)
	access function for velocity More...
virtual Vec3D	get_Velocity () const =0
virtual void	read (std::istream &is UNUSED)=0
virtual void	print (std::ostream &os UNUSED) const =0
virtual void	moveInHandler (int newPos)
int	getIndSpecies () const
void	setIndSpecies (const int _new)
const Vec3D &	get_Force () const
const Vec3D &	get_Torque () const
void	set_Force (Vec3D _new)
void	set_Torque (Vec3D _new)
void	set_Index (int index)
void	set_Id (int id)
void	add_Force (Vec3D _new)
void	add_Torque (Vec3D _new)

Public Attributes
int	indSpecies

Protected Attributes
Vec3D	velocity
	velocity of the wall (used to calculate the relative velocity in the force calculation) More...

Private Attributes
Vec3D	force
Vec3D	torque
WallHandler *	_handler
int	_index
int	_id

Friends
std::ostream &	operator<< (std::ostream &os, BaseWall &w)
std::istream &	operator>> (std::istream &is, BaseWall &w)

Detailed Description

Definition at line 32 of file BaseWall.h.

Constructor & Destructor Documentation

BaseWall::BaseWall ( )

inline

Definition at line 38 of file BaseWall.h.

References _handler, _id, _index, force, indSpecies, Vec3D::set_zero(), torque, and velocity.

    {
        velocity.set_zero();
        force.set_zero();
        torque.set_zero();
        indSpecies=0;
        _handler=0;
        _index=0;
        _id=0;

        #ifdef CONSTUCTOR_OUTPUT
            std::cout<<"BaseWall() finished"<<std::endl;
        #endif
    }

BaseWall::BaseWall ( const BaseWall &  p )

inline

Definition at line 53 of file BaseWall.h.

References _handler, _id, _index, force, indSpecies, torque, and velocity.

    {
        velocity=p.velocity;
        force=p.force;
        torque=p.torque;
        indSpecies=p.indSpecies;
        _handler=p._handler;
        _index=p._index;
        _id=p._id;

        #ifdef CONSTUCTOR_OUTPUT
            std::cout<<"BaseWall(const BaseWall &p) finished"<<std::endl;
        #endif
    }

virtual BaseWall::~BaseWall ( )

inlinevirtual

Definition at line 68 of file BaseWall.h.

{};

Member Function Documentation

void BaseWall::add_Force ( Vec3D  _new )

inline

Definition at line 110 of file BaseWall.h.

References force.

Referenced by MD::compute_walls().

{force+=_new;}

void BaseWall::add_Torque ( Vec3D  _new )

inline

Definition at line 111 of file BaseWall.h.

References torque.

Referenced by MD::compute_walls().

{torque+=_new;}

virtual void BaseWall::clear ( )

inlinevirtual

Reimplemented in InfiniteWallWithHole, InfiniteWall, CylindricalWall, and FiniteWall.

Definition at line 72 of file BaseWall.h.

{std::cout<<"BaseWall::clear(), this function shouldn't be called"<<std::endl;}

virtual BaseWall* BaseWall::copy ( ) const

pure virtual

Implemented in InfiniteWallWithHole, Screw, Coil, InfiniteWall, CylindricalWall, FiniteAxisSymmetricWall, and FiniteWall.

Referenced by WallHandler::copyAndAddWall().

virtual bool BaseWall::get_distance_and_normal ( BaseParticle &P  UNUSED, Mdouble &distance  UNUSED, Vec3D &normal_return  UNUSED  )

pure virtual

Referenced by MD::compute_walls().

const Vec3D& BaseWall::get_Force ( ) const

inline

Definition at line 104 of file BaseWall.h.

References force.

{return force;}

const Vec3D& BaseWall::get_Torque ( ) const

inline

Definition at line 105 of file BaseWall.h.

References torque.

{return torque;}

virtual Vec3D BaseWall::get_Velocity ( ) const

pure virtual

Implemented in FiniteWall, Screw, InfiniteWallWithHole, Coil, InfiniteWall, FiniteAxisSymmetricWall, and CylindricalWall.

Referenced by MD::compute_walls().

int BaseWall::getIndSpecies ( ) const

inline

Definition at line 100 of file BaseWall.h.

References indSpecies.

{return indSpecies;}

virtual void BaseWall::move ( Mdouble position_  UNUSED )

inlinevirtual

Allows the wall to be moved to a new position.

Reimplemented in InfiniteWallWithHole, and InfiniteWall.

Definition at line 75 of file BaseWall.h.

{std::cout<<"BaseWall:move(Mdouble position_ UNUSED), this function shouldn't be called"<<std::endl;}

virtual void BaseWall::move ( Vec3D velocity_  UNUSED, Mdouble dt  UNUSED  )

inlinevirtual

Allows the wall to be moved to a new position (also orthogonal to the normal), and setting the velocity.

Reimplemented in InfiniteWallWithHole, and InfiniteWall.

Definition at line 78 of file BaseWall.h.

{std::cout<<"BaseWall::move(Vec3D velocity_, Mdouble dt UNUSED), this function shouldn't be called"<<std::endl;}

virtual void BaseWall::move_time ( Mdouble dt  UNUSED )

inlinevirtual

Allows the wall to be moved to a new position (also orthogonal to the normal), and setting the velocity.

Reimplemented in Screw, Coil, InfiniteWallWithHole, and InfiniteWall.

Definition at line 81 of file BaseWall.h.

{std::cout<<"BaseWall::move_time(Mdouble dt UNUSED), this function shouldn't be called"<<std::endl;}

virtual void BaseWall::moveInHandler ( int  newPos )

inlinevirtual

Definition at line 98 of file BaseWall.h.

References _index.

{_index=newPos;}

virtual void BaseWall::print ( std::ostream &os  UNUSED ) const

pure virtual

Referenced by operator<<(), and MD::print().

virtual void BaseWall::read ( std::istream &is  UNUSED )

pure virtual

Referenced by operator>>().

void BaseWall::set_Force ( Vec3D  _new )

inline

Definition at line 106 of file BaseWall.h.

References force.

{force=_new;}

void BaseWall::set_Id ( int  id )

inline

Definition at line 109 of file BaseWall.h.

References _id.

{_id=id;}

void BaseWall::set_Index ( int  index )

inline

Definition at line 108 of file BaseWall.h.

References _index.

{_index=index;}

void BaseWall::set_Torque ( Vec3D  _new )

inline

Definition at line 107 of file BaseWall.h.

References torque.

{torque=_new;}

void BaseWall::set_Velocity ( Vec3D  new_ )

inline

access function for velocity

Definition at line 86 of file BaseWall.h.

References velocity.

{velocity=new_;}

void BaseWall::setIndSpecies ( const int  _new )

inline

Definition at line 102 of file BaseWall.h.

References indSpecies.

{indSpecies=_new;}

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  os, BaseWall &  w  )

friend

Definition at line 124 of file BaseWall.h.

{
    w.print(os);
    return os;
}

std::istream& operator>> ( std::istream &  is, BaseWall &  w  )

friend

Definition at line 130 of file BaseWall.h.

{
    w.read(is);
    return(is);
}

Member Data Documentation

WallHandler* BaseWall::_handler

private

Definition at line 118 of file BaseWall.h.

Referenced by BaseWall().

int BaseWall::_id

private

Definition at line 120 of file BaseWall.h.

Referenced by BaseWall(), and set_Id().

int BaseWall::_index

private

Definition at line 119 of file BaseWall.h.

Referenced by BaseWall(), moveInHandler(), and set_Index().

Vec3D BaseWall::force

private

Definition at line 116 of file BaseWall.h.

Referenced by add_Force(), BaseWall(), get_Force(), and set_Force().

int BaseWall::indSpecies

Definition at line 36 of file BaseWall.h.

Referenced by BaseWall(), FiniteWall::clear(), CylindricalWall::clear(), InfiniteWall::clear(), InfiniteWallWithHole::clear(), MD::compute_walls(), getIndSpecies(), and setIndSpecies().

Vec3D BaseWall::torque

private

Definition at line 117 of file BaseWall.h.

Referenced by add_Torque(), BaseWall(), get_Torque(), and set_Torque().

Vec3D BaseWall::velocity

protected

velocity of the wall (used to calculate the relative velocity in the force calculation)

Definition at line 114 of file BaseWall.h.

Referenced by BaseWall(), FiniteWall::clear(), InfiniteWall::clear(), FiniteAxisSymmetricWall::get_distance_and_normal(), InfiniteWall::get_Velocity(), FiniteWall::get_Velocity(), InfiniteWall::move(), InfiniteWall::move_time(), FiniteAxisSymmetricWall::moveAxisOrigin(), InfiniteWall::print(), FiniteWall::print(), InfiniteWall::read(), FiniteWall::read(), and set_Velocity().

---

The documentation for this class was generated from the following file:

• BaseWall.h
